FRAME

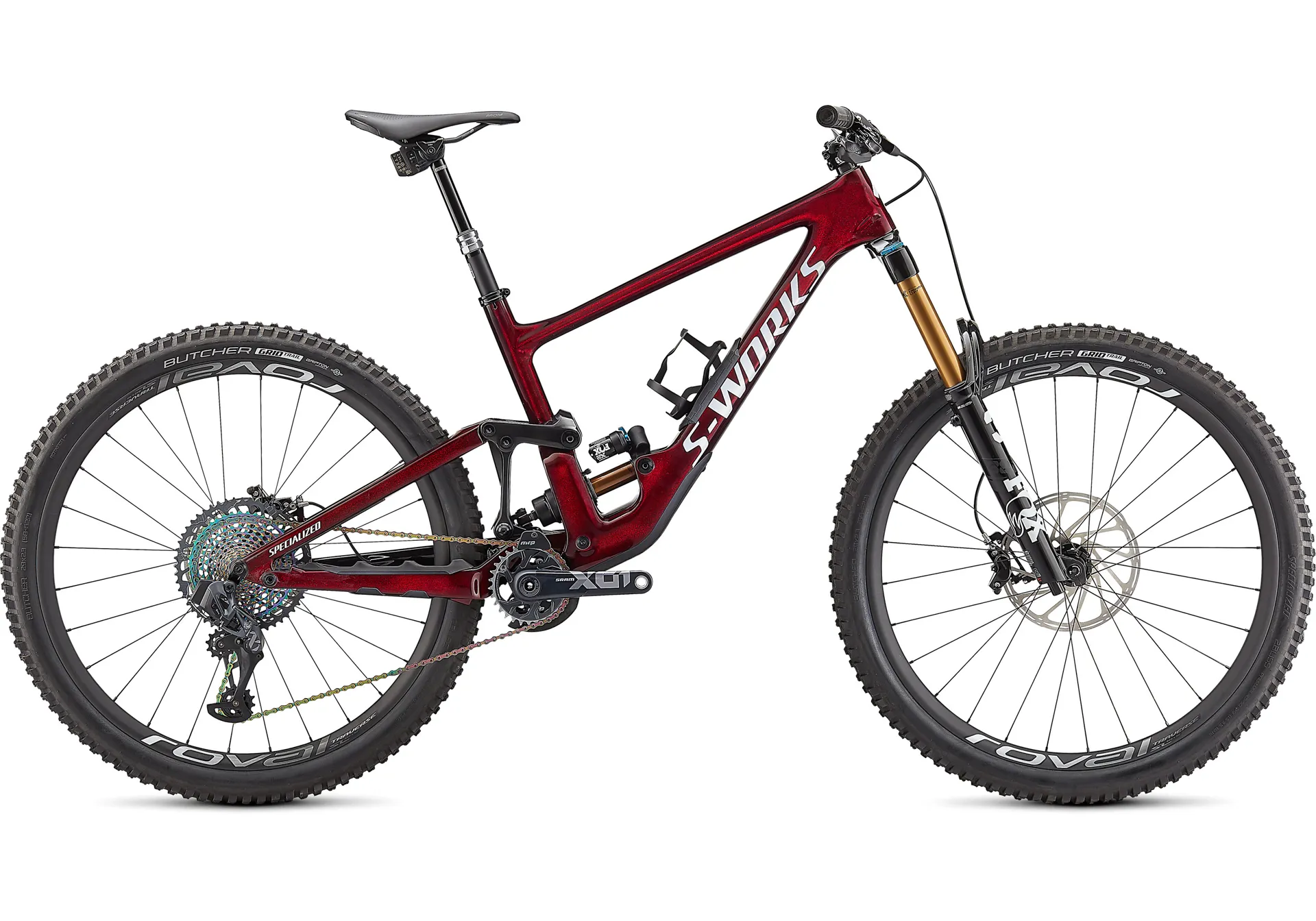

The new Enduro features a full-carbon frameset, boasting 170mm of suspension travel in an all-new design that increases your control and speed over the roughest sections of trail, yet also boasts exceptional pedaling efficiency. We’ve also given the new Enduro aggressive “long, low and slack” geometry for a more balanced and confident feel at speed. You’ll find a host smart details, including our SWAT™ Door down tube storage integration, a creak-free threaded BB, and painless internal cable routing. Finally, our S-Works frame also sports upper and lower carbon linkage, which shaves an additional 210 grams of the ultra-light frameset.
SEAT BINDER
Alloy, 38.6
REAR SHOCK
FOX FLOAT X2 Factory, Rx Trail Tune, 2-position adjustment, high and low speed rebound and compression adjust, Trunnion mount, 205x60mm
FORK
FOX FLOAT 38 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 170mm of travel
STEM
Deity Copperhead, 35.0mm
HANDLEBARS
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
GRIPS
Deity, Knuckleduster, Black
SADDLE
Bridge, 155/143mm, Hollow Ti-rails
SEATPOST
RockShox Reverb AXS, 30.9, 1X remote, (S2/S3: 150mm, S4/S5:170mm)
FRONT BRAKE
SRAM Code RSC, 4-piston caliper, hydraulic disc, 220mm
REAR BRAKE
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
REAR DERAILLEUR
SRAM XX1 Eagle AXS
SHIFT LEVERS
SRAM XX1 Eagle AXS
CHAIN
SRAM XX1 Eagle
CRANKSET
SRAM X01 Eagle, DUB, 170mm
CHAINRINGS
Steel, 30T
RIMS
Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
FRONT HUB
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
REAR HUB
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
SPOKES
DT Competition Race
FRONT TIRE
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
REAR TIRE
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
INNER TUBES
Standard, Presta valve
