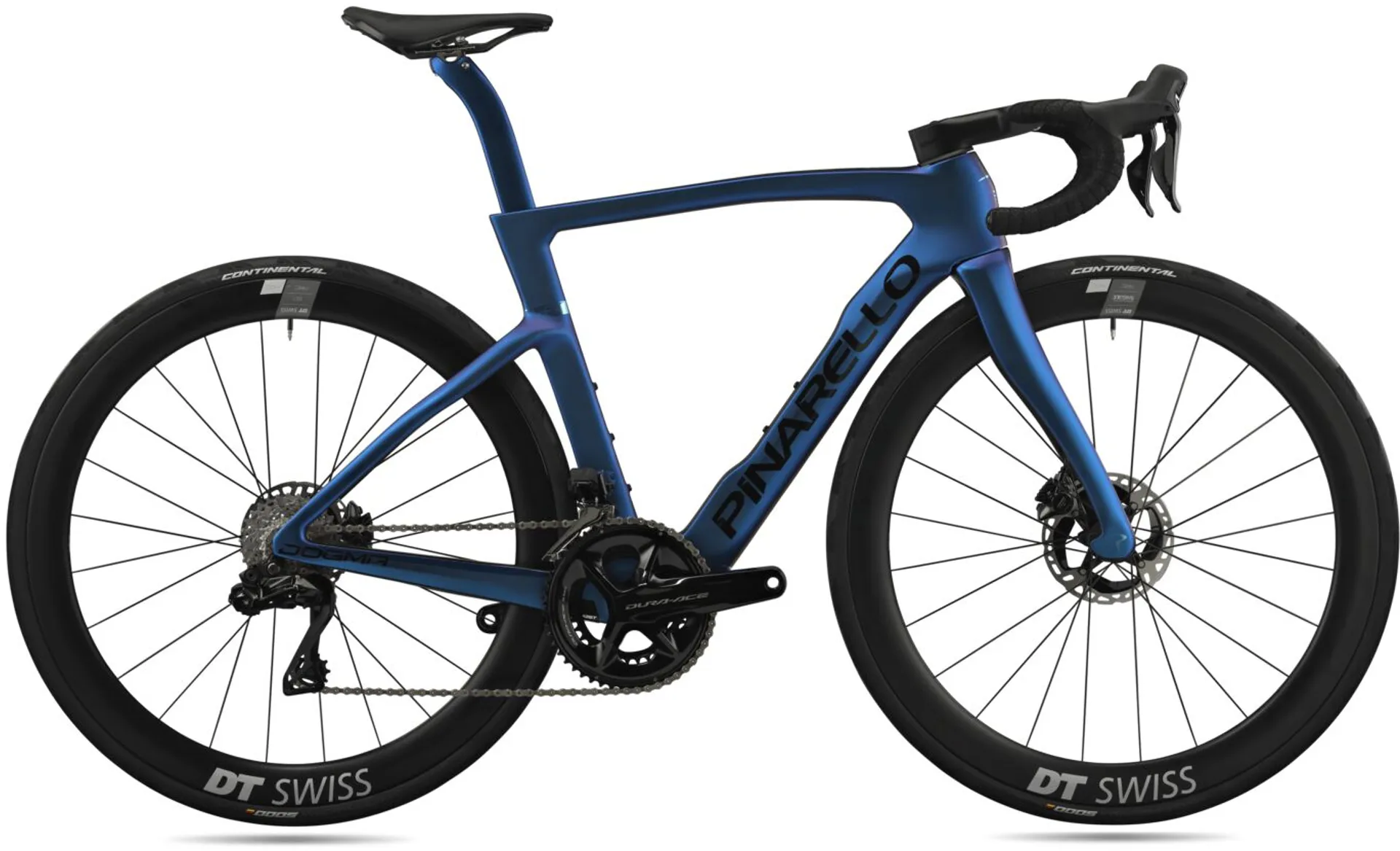

PINARELLO DOGMA F DURA-ACE ROAD BIKE 2025
Pinarellohas consistently mastered the fusion of exceptional performance, cutting-edge technology, and aesthetic beauty since the debut of the first DOGMA 22 years ago. The DOGMA series continues to stand out with its unique design and superior performance. The latest model, theDOGMA F, epitomizes the perfect blend of form and function, thanks to the continuous dialogue between our head designers. The new M40X carbon fiber propels the DOGMA F to new heights, offering unparalleled tensile strength and lateral stiffness, refined through rigorous testing on our X-Light models and INEOS Grenadiers’ bikes.
The DOGMA F incorporates numerous aerodynamic enhancements to reduce drag and boost speed. Leveraging the latest Computational Fluid Dynamics (CFD) simulations and extensive wind tunnel testing, we have optimized every detail. The redesigned down tube enhances frontal aerodynamic performance and reduces drag, while the new Aero-Keel bottom bracket improves the aerodynamics of the bottom bracket area. The slimmer head tube nose, reduced by 8mm, enhances frontal aero penetration. The new Talon Fast integrated cockpit is lighter and more aerodynamic, featuring a natural twisted lever position for safer aero riding. Additionally, shorter thru axles and integrated components enhance both the aerodynamics and aesthetics of the frame, making the DOGMA F a pinnacle of engineering and design.
New carbon-layup.
Pinarello's decades of testing on their X-Light range has now resulted in M40X: a groundbreaking lay-up with exceptional tensile strength. Lateral stiffness has been taken to the next level, and the system weight has decreased by 108g.
Every inch optimised.
The new Dogma F has been completely reshaped with the goal of improving aerodynamic penetration. The down tube has been rotated 3.5°, creating a keel shape at the bottom bracket, and it also features a narrower front profile. The head tube has been made 8mm slimmer and longer for another gain in the key area of aerodynamic performance. Finally, the thru-axles have been shortened and are now shrouded by the frame for another aerodynamic gain, particularly important on the front fork. Taken together, Pinarello have unlocked a 175g saving in aerodynamic drag.
Evolutionary new handlebar.
The new Talon Fast fully integrated cockpit is lighter, thanks to the M40X carbon lay-up, and features a new, more aerodynamic shape. Most importantly, it offers a natural twisted lever position, tucking in the brake hoods. This allows riders to adopt far more aerodynamic positions, both safely and in comfort.
