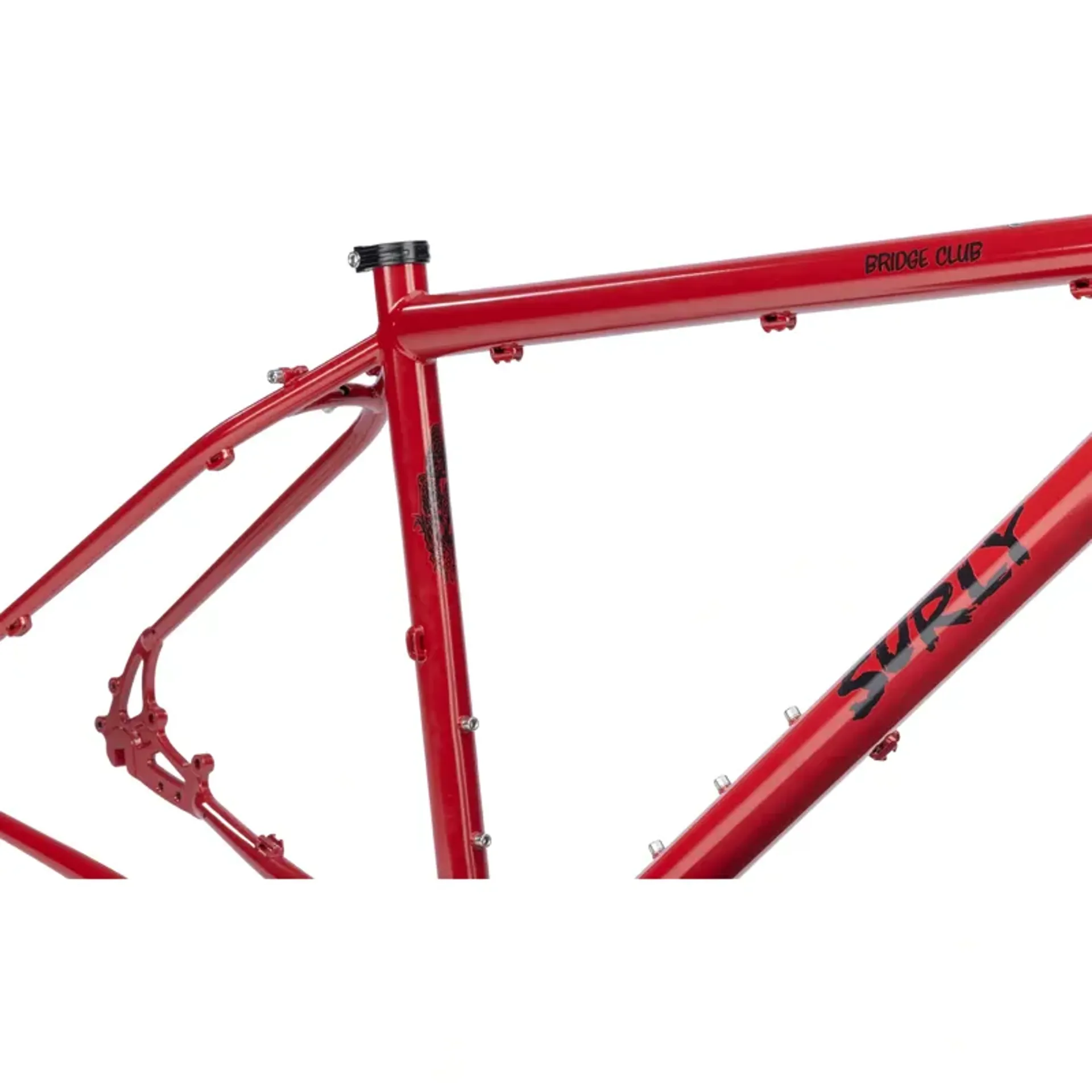

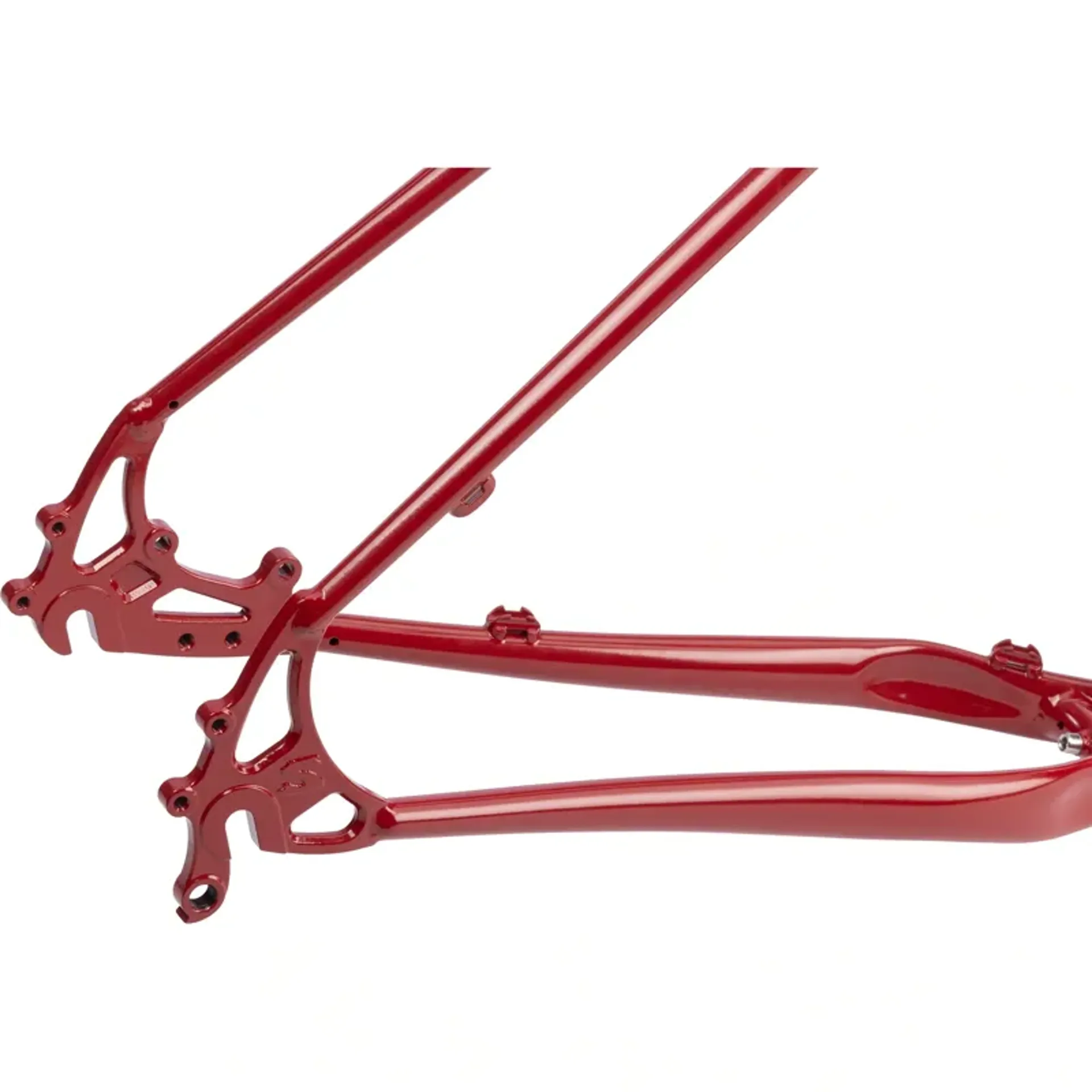

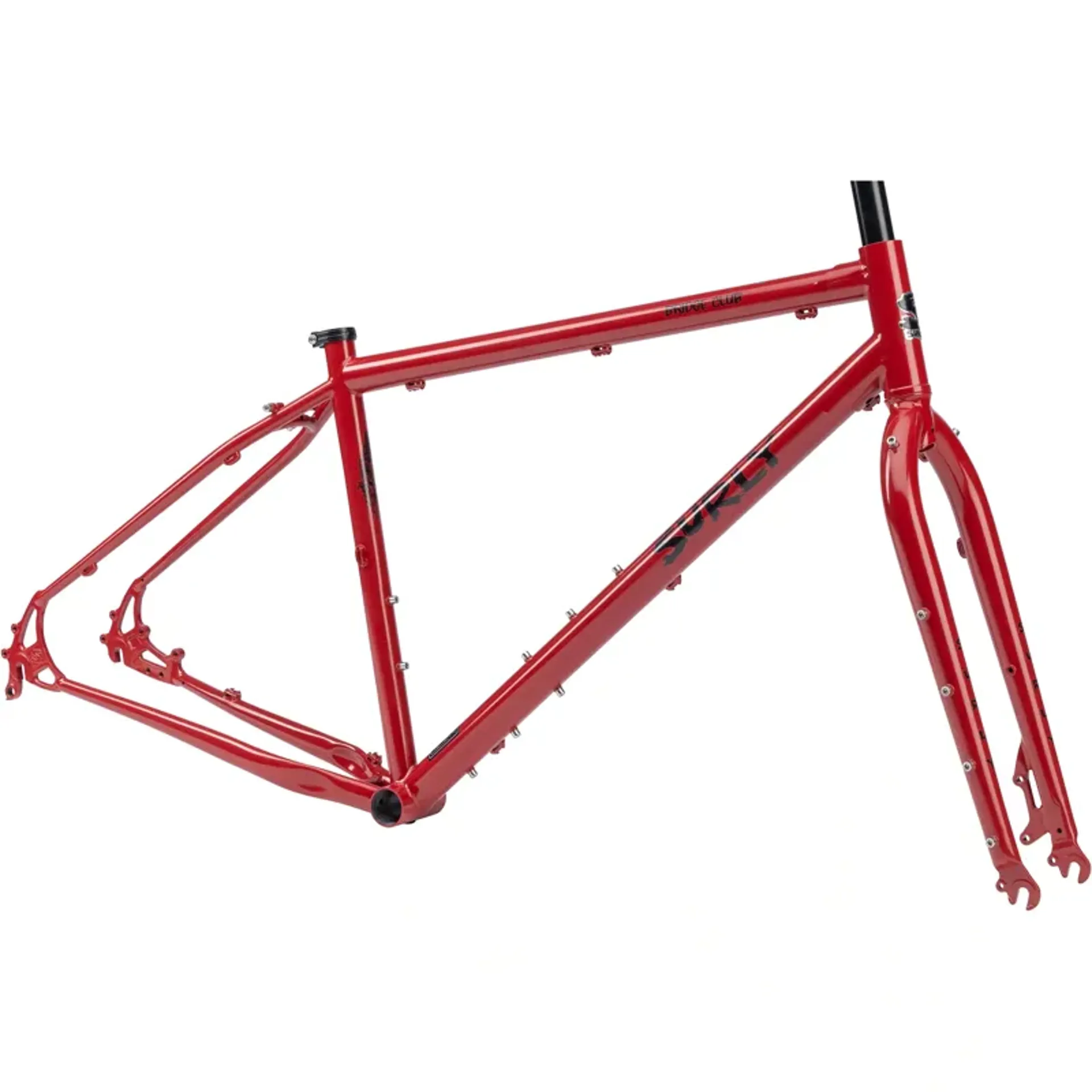

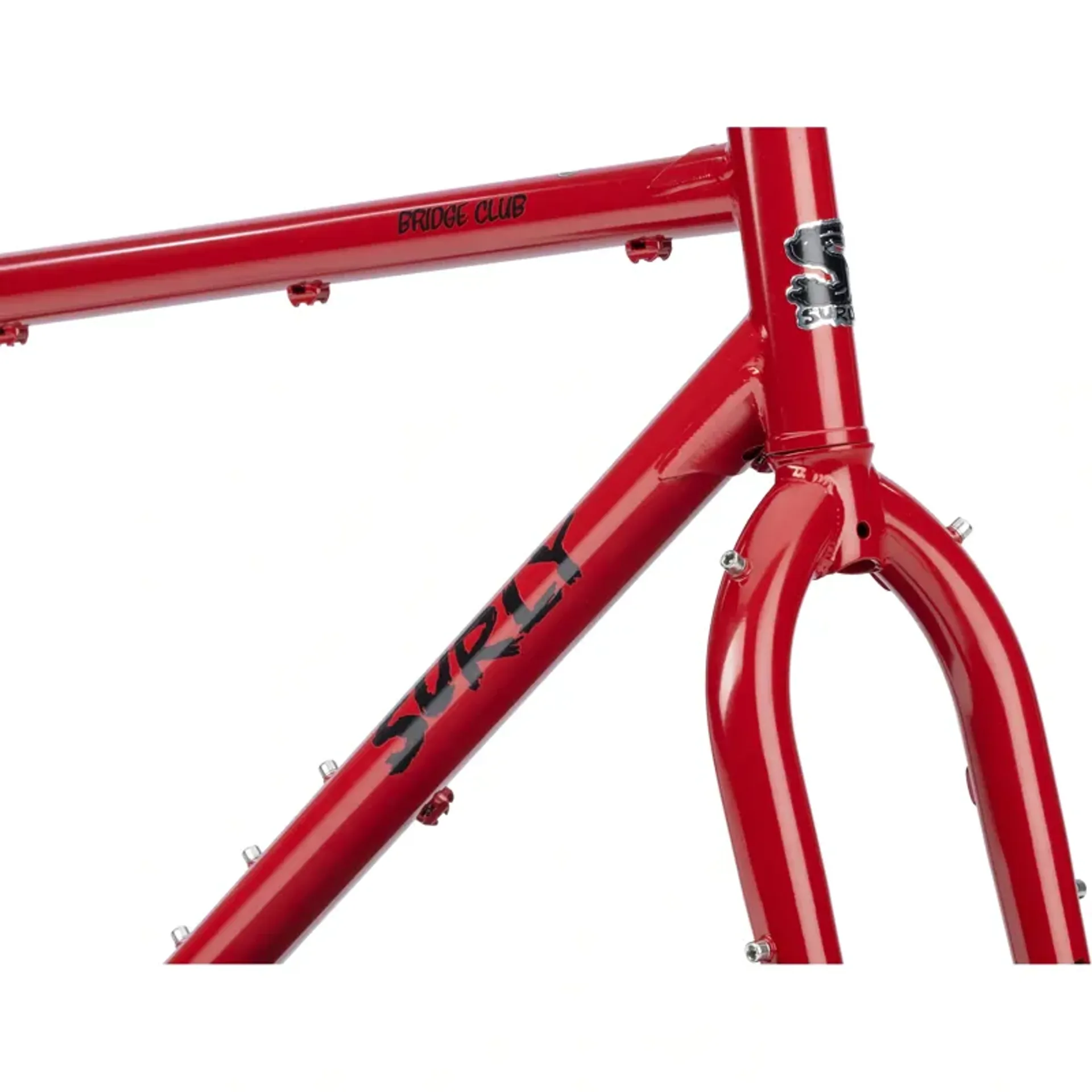

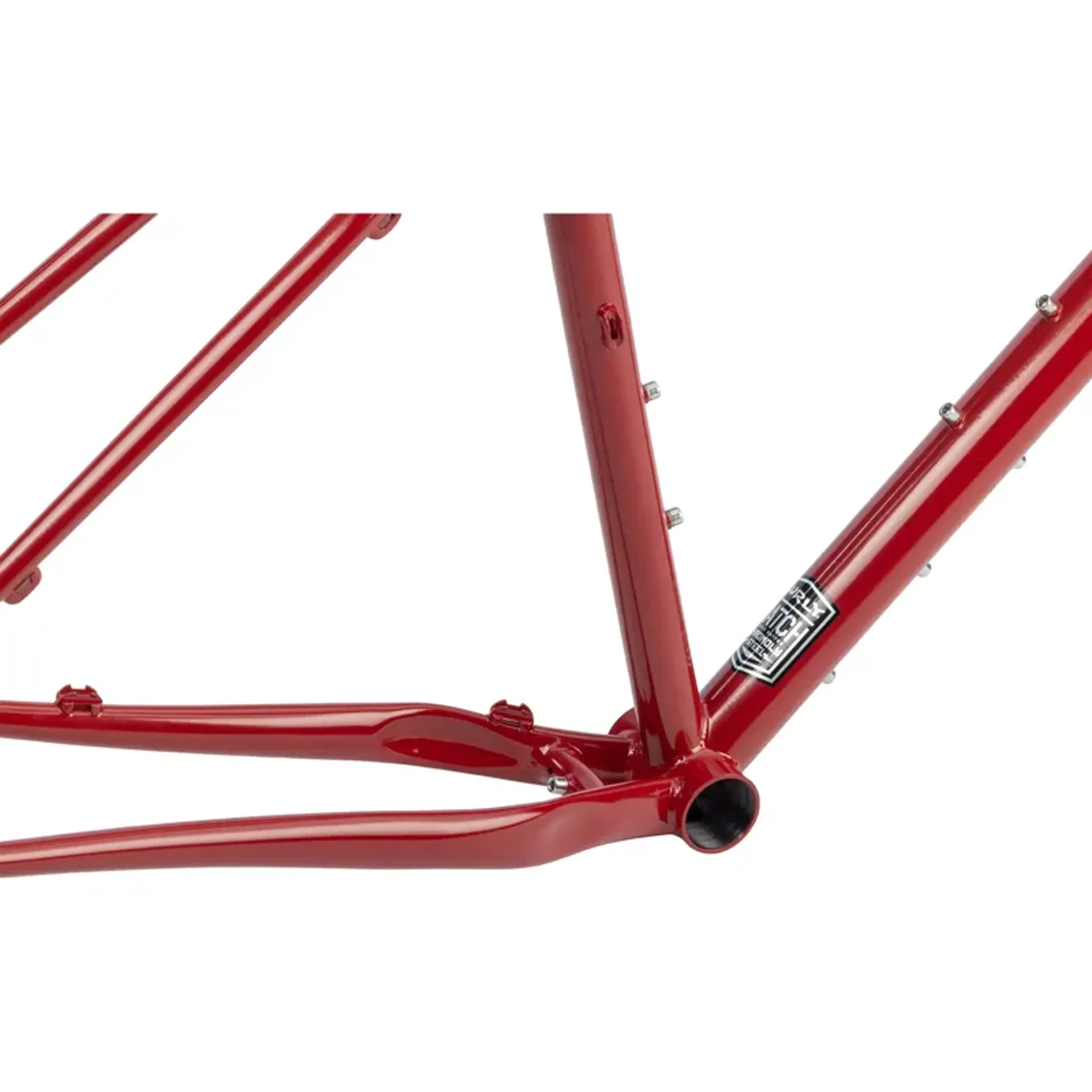

Surly Bridge Club Frameset in Lingering Cranberry

Season:2026

Brand:Surly - Bikes/Frames

Code:DERgniregniLder-bulcegdir

Bridge Club is for those multi-surface outings — planned or unplanned.

Bridge Club is ready for reroutes through the woods. It is designed for light bikepacking, doubletrack, and commuting.

Features:

  • Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist.
  • Run racks and panniers, framebags, or all of the above.
  • Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category.
  • Clearance for 700 x 47mm tyres (with or without mudguards), 27.5 x 7.1cm (2.8”) tyres (27.5 x 6.6cm (2.6”) with mudguards), and 26 x 7.6cm (3”) tyres (26 x 7.1cm (2.8”) with mudguards).
Technical Information
  • Frame material
    100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork material
    100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
  • Seatpost clamp
    Surly Stainless 30.0
  • Frame weight
    7 lb 1 oz for Medium
  • Design wheel/tyre sizes
    27.5 x 2.4"
  • Alternate wheel/tyre sizes
    Frame clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders - Fork clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders
  • Rigid fork length
    420mm
  • Fork offset
    45mm
  • Axle to crown
    420mm
  • Rear spacing
    Gnot-Boost 138mm
  • Rear axle size
    10 x 135mm or 10 x 141mm
  • Rear brake rotor
    Disc - 51mm I.S. (180mm max rotor)
  • Front brake rotor
    Disc - 51mm I.S. (203mm max rotor)
  • Headset upper
    EC34/28.6
  • Headset lower
    EC34/30
  • Front spacing
    10 x 100mm
  • Steerer tube
    Ø28.6mm (1-1/8")
  • Crown race
    Ø30mm (1-1/8")
  • Stem clamp
    Ø28.6mm (1-1/8")
  • Seatpost
    Ø27.2mm
  • Dropper post compatible
    No
  • Seatpost clamp diameter
    Ø30mm
  • Front derailleur clamp
    Ø28.6mm
  • Front derailleur type
    High direct mount top-pull (Ø28.6mm) 26mm offset adapter for 135mm rear hub spacing 29mm offset adapter for 141mm rear hub spacing
  • Bottom bracket
    73mm threaded (1.37" x 24TPI)
  • Crankset max ring
    1x (Mtn): 34T / 2x (Mtn): 26/40T / 3x (Mtn): 22/36/44T / 1x (Boost): 40T / 2x (Boost): 32/42T
  • Bottle mounts
    2 Three-Pack (XS) / 1 Standard + 2 Three-Pack (S - XL)
  • Fork mounts
    2 Four-pack mounts
  • Front fender mounts
    Yes
  • Rear fender mounts
    Yes
  • Effective top tube (XS-XL)
    545.0mm, 570.0mm, 595.0mm, 615.0mm, 630.0mm
  • Stand over (XS-XL)
    709.0mm, 750.5mm, 780.0mm, 812.0mm, 845.5mm
  • Reach (XS-XL)
    376.0mm, 397.0mm, 419.0mm, 434.5mm, 444.0mm
  • Stack (XS-XL)
    553.0mm, 567.0mm, 576.0mm, 590.0mm, 609.0mm
  • Total seat tube length (XS-XL)
    335.6mm, 406.4mm, 457.2mm, 508.0mm, 558.8mm
  • Headtube length (XS-XL)
    110.0mm, 120.0mm, 130.0mm, 145.0mm, 165.0mm
  • Headtube angle
    70.0 (XS), 71.0 (S-XL)
  • Seat tube angle
    73.0
  • BB drop
    60.0mm
  • Chainstay length
    435.0mm
  • Wheelbase (XS-XL)
    1032.0mm, 1047.5mm, 1073.0mm, 1093.0mm, 1109.0mm
  • Recommended rider height (XS-XL)
    145-160cm, 155-170cm, 165-180cm, 175-191cm, 185-201cm
